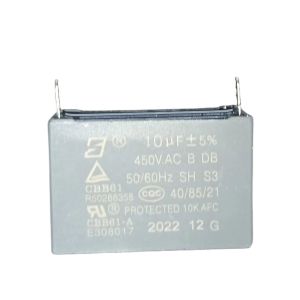

CBB61 450v 10UF Air Conditioner Fan Capacitor Terminal Type Capacitor 10000 Hours

This capacitor uses a metallized zinc-aluminum film with thickened edges as the electrode and dielectric. Then fill the ABS or PBT cube plastic shell with flame-retardant epoxy resin. This product has small size, good performance, product grade is B, and has a service life of 10,000 hours.

Applications

CBB61 is used for starting box operation of 50/60Hz single-phase AC motor, the product has small size, long life, high proportion characteristics, with self-healing performance, and is widely used in fans, ceiling fans, floor fans, range hoods, industrial air, blowers to start and operate.

Basic Info.(Techical Parameters)

Outline Drawing(58mm=2-9/32in,26mm=1-1/32in,38mm=1-1/2in)



Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

Workshop and Transport



Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.

Changzhou Xunwande Electronics Co., Ltd

    Changzhou Xunwande Electronics Co., Ltd. was established in 2015, is located in the hinterland of the Yangtze River Delta in China - the center of Wujin District, Changzhou City,Jiangsu Province,with convenient transportation. Is a set design, sales and after-sales service in one of the large professional mechanical and electrical supply chain company. Supporting a number of domestic first-line brand film capacitor enterprises.

The main models are:

    One of the company's products (household) MKP-X2 anti-interference, MKPH series household electromagnetic furace special capacito

    Company product 2 (consumer electronics) CBB60,CBB61,CBB65,CBB80,CD60 series AC motor start running capacitor
    The company's three products (industrial energy) IGBT absorption protection MKPH-S, MKP-LL DC filter support capacitor, MKP-LB vehicle energy filter capacitor.

     The company sells supporting products with reliable quality and high cost performance, which have passed CQC, UL, VDE, TUV, CSA, CB and other multinational certification certificates, and 15 series of products have been recognized as high-tech products in this province. The annual output exceeds 300 million, the products are exported to Europe, America, Japan, Taiwan, Southeast Asia and other countries and regions.

Honor qualification
