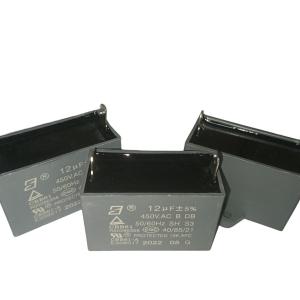

Industrial Fan Capacitor CBB61 450V 12UF 10000 Hours RoHS Protected 10000AFC

Ask Lasest Price
Brand Name :	XWD
Model Number :	CBB61 Capacitor
Certification :	UL / TUV / CQC / ROHS
Price :	To be negotiated
Payment Terms :	T/T, L/C, D/P
Supply Ability :	10000 Pieces per Day
Delivery Time :	7-20 workdays

Add to Cart

Product Details
Company Profile

Industrial Fan Capacitor CBB61 450V 12UF 10000 Hours RoHS Protected 10000AFC

Air Conditioner Fan Capacitor is an ideal choice for various air conditioner. It is certified by UL / TUV / CQC / ROHS. This air conditioner fan capacitor has a rated voltage of 450VAC. It is available from Original Manufacturer, ODM, Agency and Retailer. Its operating temperature is -40℃~+85℃ and its lifetime is 10000 Hours.
Air Conditioner Fan Capacitor is a reliable and cost-effective product that provides great performance. It is suitable for a wide range of applications including electric motors, air conditioners, refrigerators, washing machines, and many more. It is perfect for motor starters that require a reliable and efficient starting capacitance.

Applications

Air Conditioner Fan Capacitor is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, et.

Basic Info.(Techical Parameters)

Rated frequency	50/60Hz
Rated Voltage	450V.AC
Capacitance Range	12UF
Capacitance tolerance	±5%
Withstand voltage test	2.0Un 2S
Flammability	UL94V-0
Operating temperature range		-40℃~+85℃(40/85/21)

Operation temperature range	-40℃~+85℃
Rated Voltage	110V.AC-630V.AC
Capacitance Range	0.1uF~20uF
Capacitance tolerance	±5% (J),±10%(K)
Dissipation factor	tgō0.001(at 100Hz)
Withstand voltage Between terminals	2.0Un(10s)
Withstand voltage Terminals to case	2000V.AC
Insulation resistance	CXRs>5000s
Flame retardation	UL94V-0
Referenced standard	IEC 6025 UL810 GB3667-2005

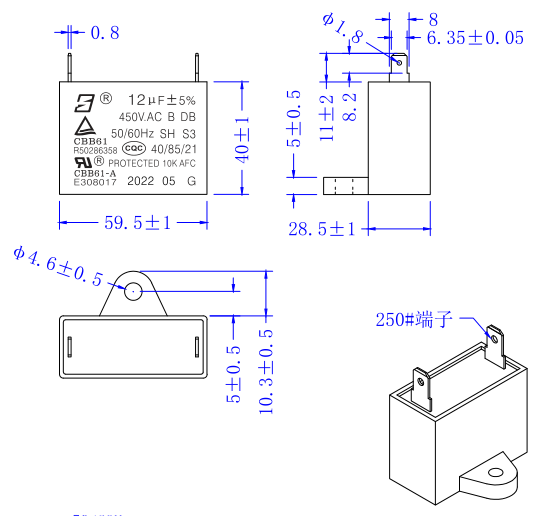

Outline Drawing(59.5mm=2-11/32in,28.5mm=1-1/8in,40mm=1-37/64in)

Industrial Fan Capacitor CBB61 450V 12UF 10000 Hours RoHS Protected 10000AFC
