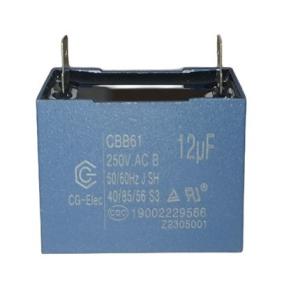

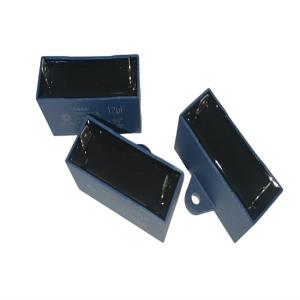

CBB61 250V 12UF S3 Air Conditioner Fan Capacitor With Plastic Triangle With Location Hole

Aircon capacitors usually consist of metal foil and electrolyte, which are rolled into a cylindrical or square shape and encapsulated in a plastic case. When the air conditioner motor starts, the air conditioner capacitor is charged and stores the electrical energy. When the air conditioner motor needs to run, the air conditioner capacitor will release the stored electrical energy to provide enough power for the air conditioner motor.

Applications

It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.

Basic Info.(Techical Parameters)

Outline Drawing(W=1-57/64in,T=3/4in,H=1-9/64in)

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

Packing and Transport

Facting Information

Why Choose XWD-CG Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.

Changzhou Xunwande Electronics Co., Ltd

    Changzhou Xunwande Electronics Co., Ltd. was established in 2015, is located in the hinterland of the Yangtze River Delta in China - the center of Wujin District, Changzhou City,Jiangsu Province,with convenient transportation. Is a set design, sales and after-sales service in one of the large professional mechanical and electrical supply chain company. Supporting a number of domestic first-line brand film capacitor enterprises.

The main models are:

    One of the company's products (household) MKP-X2 anti-interference, MKPH series household electromagnetic furace special capacito

    Company product 2 (consumer electronics) CBB60,CBB61,CBB65,CBB80,CD60 series AC motor start running capacitor
    The company's three products (industrial energy) IGBT absorption protection MKPH-S, MKP-LL DC filter support capacitor, MKP-LB vehicle energy filter capacitor.

     The company sells supporting products with reliable quality and high cost performance, which have passed CQC, UL, VDE, TUV, CSA, CB and other multinational certification certificates, and 15 series of products have been recognized as high-tech products in this province. The annual output exceeds 300 million, the products are exported to Europe, America, Japan, Taiwan, Southeast Asia and other countries and regions.

Honor qualification
