CBB61 450V 2.0uf Air Conditioner Run Capacitor C-Class RoHs Four Quick Connect Terminals

Ask Lasest Price
Brand Name :	XWD
Model Number :	CBB61 Home AC Capacitor
Certification :	UL / ROHS / CQC / VDE
Price :	To be negotiated
Payment Terms :	T/T, L/C, D/P
Supply Ability :	10000 Pieces per Day
Delivery Time :	7-20 workdays

Add to Cart

Product Details
Company Profile

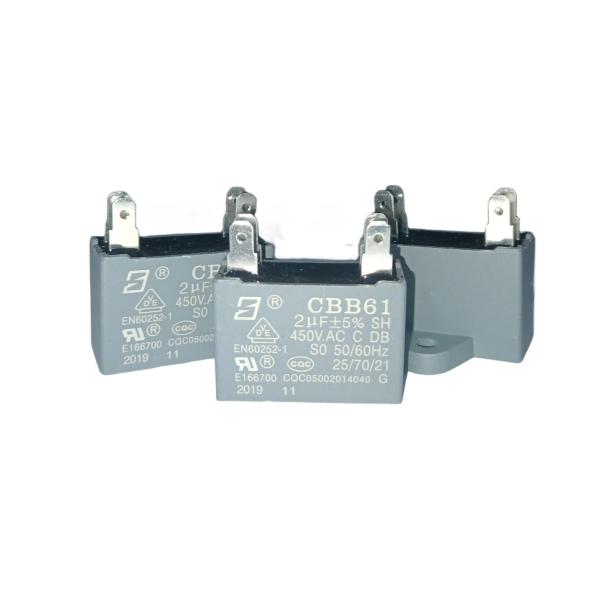

CBB61 450V 2.0uf Air Conditioner Run Capacitor C-Class RoHs Four Quick Connect Terminals

CBB61 air conditioner fan apacitor is designed to help air conditioner run more efficiently. With UL, VDE, CQC, RoHS, certification, it has a size of 37*12*25 . This air conditioner fan capacitor is available with plastic triangle with location hole. Connection options include four quick-connect terminals.

Applications

It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.

Basic Info.(Techical Parameters)

Rated frequency	50/60Hz
Rated Voltage	450V.AC
Capacitance Range	2.0UF
Capacitance tolerance	±5%
Withstand voltage test	2.0Un 2S
Flammability	UL94V-0
Operating temperature range		-25~+70℃(25/70/21)

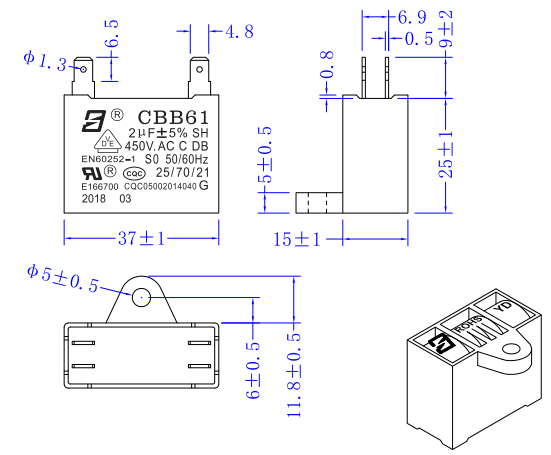

Outline Drawing(37mm=1-29/64in,15mm=19/32in,25mm=63/64in)

CBB61 450V 2.0uf Air Conditioner Run Capacitor C-Class RoHs Four Quick Connect Terminals
