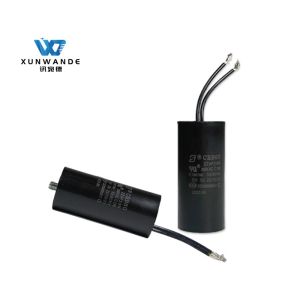

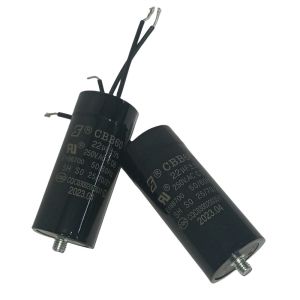

CBB60 250V 22UF Capacitor Washing Machine Capacitor Self-Healing 3000 Hours

Ask Lasest Price
Brand Name :	XWD
Model Number :	CBB60 Motor Run Capacitor
Certification :	UL / CQC
Price :	To be negotiated
Payment Terms :	T/T, L/C, D/P
Supply Ability :	10000 Pieces per Day
Delivery Time :	7-20 workdays

Add to Cart

Product Details
Company Profile

CBB60 250V 22UF Capacitor Washing Machine Capacitor Self-Healing 3000 Hours

The Water Pump Motor Capacitor is a reliable pump motor starter which provides a long-lasting life expectancy of up to 3000h-10000h. It features a lead wire terminal with a leads length of 60mm, and it is made of a C-class material. The temperature range of this water pump motor starter can be as low as -25℃ and as high as +70℃.

Applications

It is suitable for various water pump units due to its high performance and efficiency. This water pump motor capacitor is designed for use in a variety of water pump applications, such as industrial and commercial water pump systems.

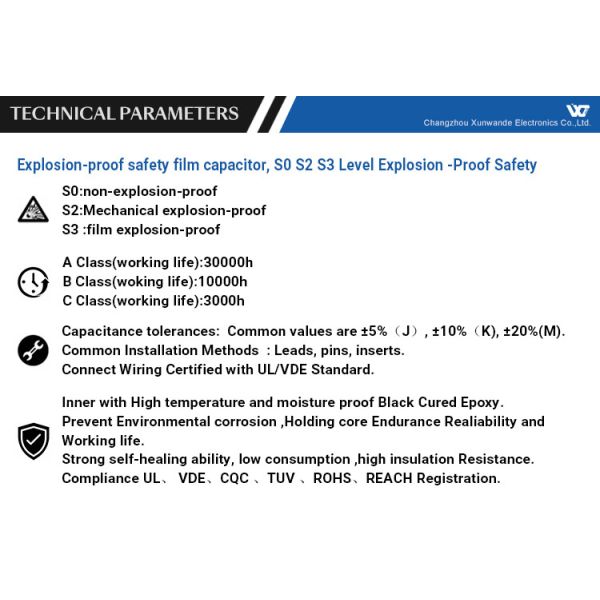

Basic Info.(Techical Parameters)

Rated frequency	50/60Hz
Rated Voltage	250V.AC
Capacitance Range	22UF
Capacitance tolerance	±5%
Lifetime	3000 hours
Size	Φ30mm70mm(1-3/16in2-3/4in)
Operating temperature range		-25℃~70℃(-25/70/21)

Operation temperature range	-40℃~+105℃(40170121 40/85121 40/105/21)
Rated Voltage	250V.AC-600V.AC
Capacitance Range	3uF~120uF
Capacitance tolerance	±5% (J),±10%(K)
Tangent of loss angle(20℃)	≤0.0010(at 100Hz)
Insulation resistance	Rc>5000s(100V.DC 60s)
Flammability	UL94V-0
Operation life time	3000H(C Class)at 70℃/10000H(B Class) at 85℃ /30000H(A Class)at 85℃
Withstand voltage	2.0Un (VAC)/60s(CQC, VDE, TUV)
	1.5Un (VAC)/60s (UL)
	2.0Un+1000(VAC)/60s(≥2000VAC)
Class of safety protection	UL VDE CQC(SO) / UL TUV CQC(S3)

Outline Drawing(30mm=1-3/16in,70mm=2-3/4in)
