Motor Run Capacitor CBB61 450V 4.0UF 40 / 85 / 21 Front Lug 10000 Hours

Industrial Fan Capacitor is a high-performance device designed to provide reliable starting power and energy for Industrial Fan in a variety of applications. It is certified with UL, TUV, CQC, RoHS, and its operating temperature ranges from -40℃ to +85℃. It is available from original manufacturer, ODM, agency and retailer. The capacitor is designed with four quick-connect terminals. It is also available in a variety of mounting types, including plastic triangle with location hole, bent iron ear with location hole and straight iron ear with location hole.

Applications

Industrial Fan Capacitor is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, etc. It can provide efficient and stable performance.

Basic Info.(Techical Parameters)

Rated frequency	50/60Hz
Rated Voltage	450V.AC
Capacitance Range	4.0UF
Capacitance tolerance	±5%
Withstand voltage test	2.0Un 2S
Flammability	UL94V-0
Operating temperature range		-40~+85℃(40/85/21)

Operation temperature range	-40℃~+85℃
Rated Voltage	110V.AC-630V.AC
Capacitance Range	0.1uF~20uF
Capacitance tolerance	±5% (J),±10%(K)
Dissipation factor	tgō0.001(at 100Hz)
Withstand voltage Between terminals	2.0Un(10s)
Withstand voltage Terminals to case	2000V.AC
Insulation resistance	CXRs>5000s
Flame retardation	UL94V-0
Referenced standard	IEC 6025 UL810 GB3667-2005

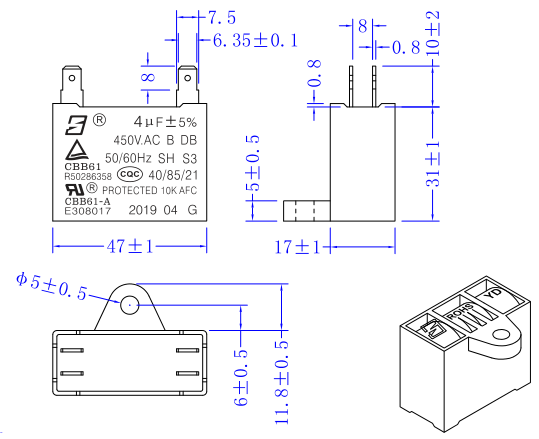

Outline Drawing(47mm=1-27/32in,17mm=43/64,31mm=1-7/32in)

Motor Run Capacitor CBB61 450V 4.0UF 40 / 85 / 21 Front Lug 10000 Hours
