CBB61 7uF 450V Wiring Fan Capacitor SH S0 B-Class 10000 hours

Ask Lasest Price
Brand Name :	XWD
Model Number :	CBB61 Capacitor
Certification :	UL / CQC
Price :	To be negotiated
Payment Terms :	T/T, L/C, D/P
Supply Ability :	10000 Pieces per Day
Delivery Time :	7-20 workdays

Add to Cart

Product Details
Company Profile

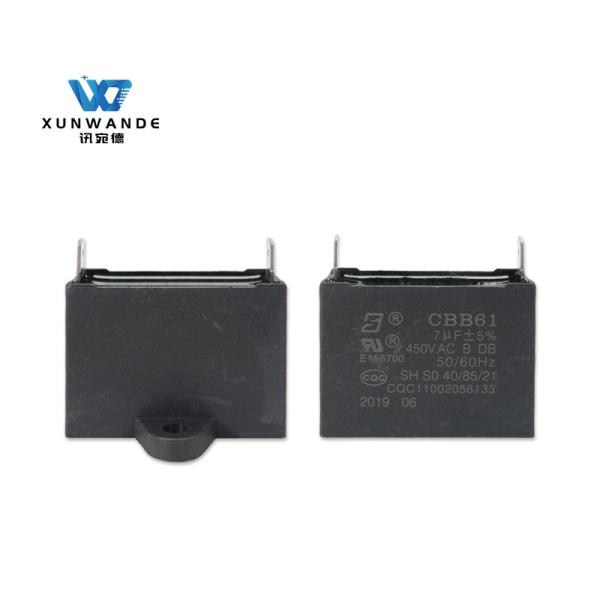

CBB61 7uF 450V Wiring Fan Capacitor SH S0 B-Class 10000 hours

Air conditioner fan capacitor are essential components of air conditioner motors. It is designed to protect the air conditioner motors from the overload and to control the speed of the fan. This product is made of 94-V0 retardant plastic box and epoxy filling, and it is rated up to 450VAC voltage. It has a tolerance of ±5% and is able to withstand 2Un .5s voltage. The installation type is a plastic triangle with location hole.

Applications

Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.

Basic Info.(Techical Parameters)

Operation temperature range	-40℃～+85℃ ( 40/85/21 )
Rated Voltage	450V.AC
Capacitance Range	7.0UF
Capacitance tolerance	±5%
Lifetime	10000 hours
Flammability	UL94V-0

Operation temperature range	-40℃~+85℃
Rated Voltage	110V.AC-630V.AC
Capacitance Range	0.1uF~20uF
Capacitance tolerance	±5% (J),±10%(K)
Dissipation factor	tgō0.001(at 100Hz)
Withstand voltage Between terminals	2.0Un(10s)
Withstand voltage Terminals to case	2000V.AC
Insulation resistance	CXRs>5000s
Flame retardation	UL94V-0
Referenced standard	IEC 6025 UL810 GB3667-2005

Outline Drawing(47mm=1-27/32in,24mm=15/16in,37mm=1-29/64in)

CBB61 7uF 450V Wiring Fan Capacitor SH S0 B-Class 10000 hours
