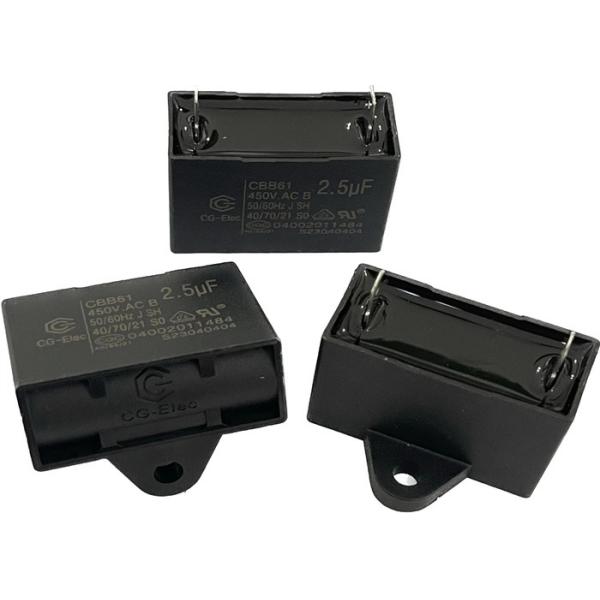

CBB61 AC motor capacitors applied to Starting and Running with
Quick-connect Terminals
CBB61(MPP/MKP) is made of metallized polypropylene film, non
inductive construction, encapsulated in a plastic case and sealed
with epoxy resin, fetch out in many ways.We have 100% automatic
production to ensure the most stable quality.
Application
Widely applied to starting and running of AC single-phase
synchronism motors at 50Hz/60Hz frequency power.They are also
widely applied for table fan, floor fan, ceiling fans, wall fan,
luxury ceiling fan, exhaust fan, extractor hood, heater,
dehumidifier, mahjong machine, smash paper machine, air
conditioners, etc.
Basic Info.(Technical Parameters)
| Operation temperature range | -40℃～+105℃(40/70/21 40/85/21 40/105/21) |
| Rated Voltage | 110V.AC~600V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J), ±10% (K) |
| Tangent of loss angle(20℃) | ≤0.0010 (at 100Hz ) |
| Insulation resistance | Rc≥5000s(100V.DC 60s) |
| Flammability | UL94V-0 |
| Operation life time | 10000H(B Class) at 85℃ |
| Withstand voltage | between terminals | 2.0Un (VAC) / 60s(CQC, VDE, TUV) |
| 1.5Un (VAC) / 60s (UL) |
| between terminals and case | 2.0Un+1000(VAC) / 60s(≥2000VAC) |
| Class of safety protection | UL VDE CQC(S0) / UL TUV CQC(S3) |
Advantage
◾ Stable reliability
◾ ExcellentSelf-healingproperty
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spray
metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12
Marking | 13 Packing | 14 Delivery
Surface Color ( RoHS / REACH )
BLUE OR GREY
Outline drawing
Packaging & Shipping
Factory Information
Factory Size | 30,000-40,000 square meters |
Factory Country/Region | No.7,East Xinyou Road, Ronggui |
Number of Production Lines | 10 Automatic Lines |
Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered |
Annual Output Value | Above US$50 Million |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor
manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw
materials supply;
√ With world-class lab center, strong R&D research and
self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO
and IATF16949;
√ Proudly work with top brands in appliances as well as the leading
power and new energy customers.
