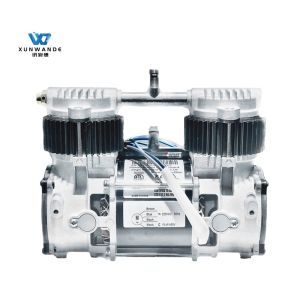

    Portable Brushless Pure Copper Motor 300W 75L Flow Air Compressor Spare Parts

    Ask Lasest Price
    Brand Name : XWD
    Model Number : ZGK350P-75
    Certification : CE ETL
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000000 Piece/Year
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Portable Brushless Pure Copper Motor 300W 75L Flow Air Compressor Spare Parts

    Complete solution leader in oilless air pump field


    * Oilless operation
    * Permanently lubricated bearings

    * High performance piston seal

    * ETL certificated (Safety)


    Model NumberZGK350P-75
    Performance Data
    Head configurationPressure parallel flowPressure parallel flow
    Nominal voltage110V/60HZ220V/50HZ
    Variable output speed1650 rpm1400rpm
    Max.open air flow75L/min75L/min
    Max.rated pressure20PSI20PSI
    Current at rated pressure3.0A1.5A
    Power at rated pressure300W290W
    Electrical Data
    Motor insulation classB
    Motor protectionNot included-Customer to integrate into system controller
    Power lead wire color,gaugeGreen(phase A),black(phase B),red(phase C),22AWG
    Hall sensor wire color,gaugeYellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG
    General Data
    Operating ambient air temperature32° to 104°F(0° to 60°C)
    Safety certificationETL
    Dimension(LXWXH)188*89*168mm
    Net weight4.9KG
    ApplicationPortable medical battery pulse oxygen concentrator
